NPM-GP/L
Autonomous Factory & Smartification
The fully automated printing solution is part of the “Autonomous Factory” Concept – a factory that immediately responds to every situation and continues to evolve autonomously. Ensuring the production of non-defective items through the integrated control of autonomous uninterrupted mounting lines and floors independent of any human intervention and judgment.
The new NPM G Series
Industry’s top edge class device

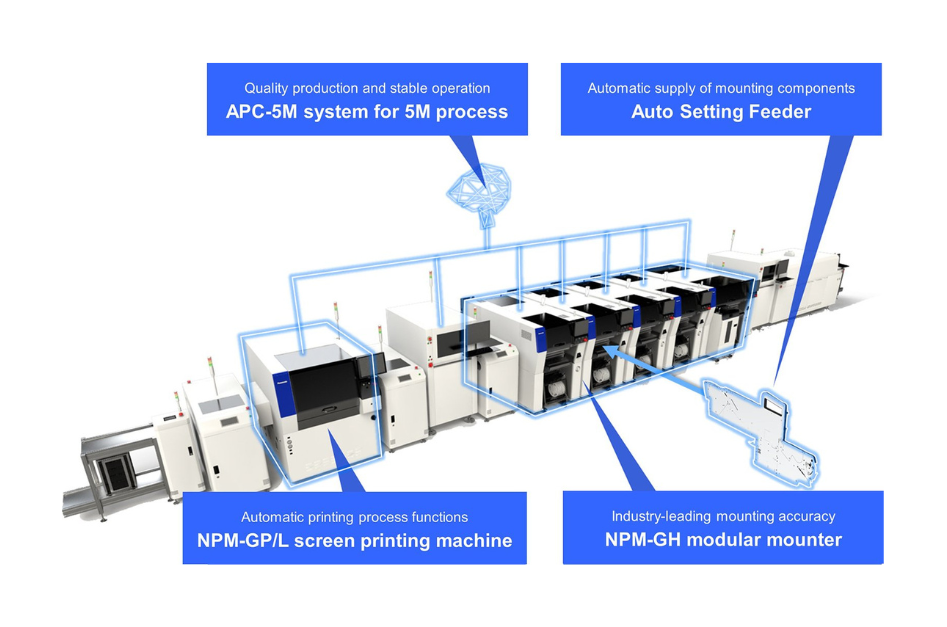

The high-precision NPM-GP/L stencil printer is part of the new NPM G Series to help making autonomous factories a reality. The NPM G Series offers flexibility and customisable options to address production needs and extend automation in manufacturing. This includes its auto setting feeder (ASF), NPM-GP/L stencil printer, and NPM-GH pick and place machine, allowing to set up individual, flexible, efficient, and economical production lines.
Features
1. Increased Production Time
- Reduces machine availability losses through automation of operations required for model changeover.
- Reduces machine performance losses through automation of operations involved in production.
- Increases production time by monitoring machine conditions and thereby performing maintenance at right times.
2. Maintenance of printing quality at a consistently high level
Reduces losses due to defective items through various functions that actualizes consistently high-quality printing capable of responding to any changes in 5M.
3. Support for line solution
Realizes high-quality line production through M2M (APC-5M) closed loop advances process control
4. New operation panel
5. Moveable Top / side clamper
6. Attack angle variable squeegee
7. Attack angle variable squeegee
8. Curved edge high filling pressure squeegee
9. Process Control & traceability
10. PCB pickup blower
11. APC-5M Option
Specifications
| Model Number | NM-EJP2B |
| PCB dimensions (mm) | L 50 mm × W 50 mm to L 510 mm × W 510 mm |
| PCB exchange | 12.0 s including transport , PCB positioning , PCB recognition , printing , each cleaning operation (When PCB = L 250 mm × W 150 mm) |
| Repeatability | 2 Cpk ± 3.8 μm ± 3σ (Panasonic-specified condition) |
| Printing Accuracy | 2 Cpk ±15.0 μm ± 6σ (Panasonic-specified condition) *CeTaQ measuring machine used |
| Screen frame dimensions | L 736 mm × 736 mm L 750 mm × 750 mm L 650 mm × 550 mm L 600 mm × 550 mm L 550 mm × 650 mm L 584 mm × 584 mm L 736 mm × 584 mm L 584 mm × 736 mm |
| Electric Source | Single-phase AC 200 V ±10 V / AC 220 V ±10 V / AC 230 V ±10 V / AC 240 V ±10 V (Taps can be changed), Max.3.3 kVA |
| Pneumatic Source | 0.5 Mpa, 30 L / min (A.N.R.) (motor vacuum specs), 400 L / min (A.N.R.) (ejector vacuum specs) |
| Dimensions | W 1 580 mm × D 1 800 mm × H 1 500 mm |
| Mass | 1 750 kg |
